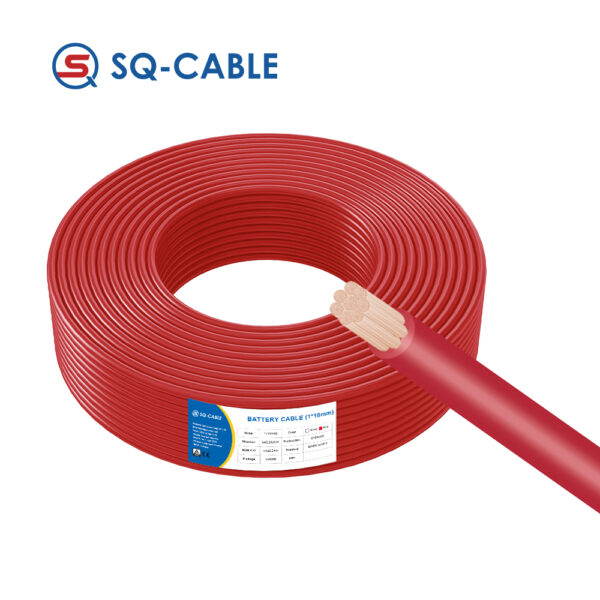

1/0 AWG Copper Rubber Battery Cable
- Conductor: copper
- Insulation & Sheath Jacket:rubber
- Rated voltage:100VDC
- Testing Voltage: 1kV
- Working temperature:-40℃~+85℃
- Fire Performance:IEC 60332-1
- Certification:EN 60332-1-2
Description
The battery cable is a type of electrical wire designed to withstand harsh environments, like those found in the automotive, agricultural, and transportation sectors. This battery wire can operate within a temperature range reaching up to 150°C and has a voltage rating of 60V. Fully assembled battery cables are crafted from 99.9% pure copper. They are insulated with a rubber jacket, which not only provides excellent conductivity and flexibility but also ensures the lowest possible resistance.
Specification
| Cross Section（AWG） | No.of Cores x Cross Sectional Area （n*mm2) |
Nominal Thickness of Insulation（mm） |
Nominal Overall Diameter（mm） |
Nominal Weight（kg/km） |
Conductor MAX. Resistance AT20℃ (Ω/km) |
| 8 | 1×10 | 2 | 7.7-9.7 | 135 | 1.91 |
| 6 | 1×16 | 2 | 8.8-11.0 | 205 | 1.21 |
| 4 | 1×25 | 2 | 10.1-12.7 | 302 | 0.78 |
| 2 | 1×35 | 2 | 11.4-14.2 | 420 | 0.55 |
| 1/0 | 1×50 | 2.2 | 13.2-16.5 | 586 | 0.39 |
| 2/0 | 1×70 | 2.4 | 15.3-19.2 | 798 | 0.27 |
| 3/0 | 1×95 | 2.6 | 17.1-21.4 | 1015 | 0.21 |
| 4/0 | 1×120 | 2.8 | 19.2-24.0 | 1310 | 0.15 |
Packing & Delivery
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 – 20 days, which will be adjusted according to the quantity of the bulk order.
Packing
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 - 20 days, which will be adjusted according to the quantity of the bulk order.
