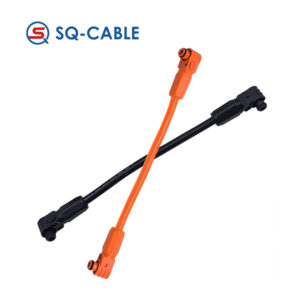

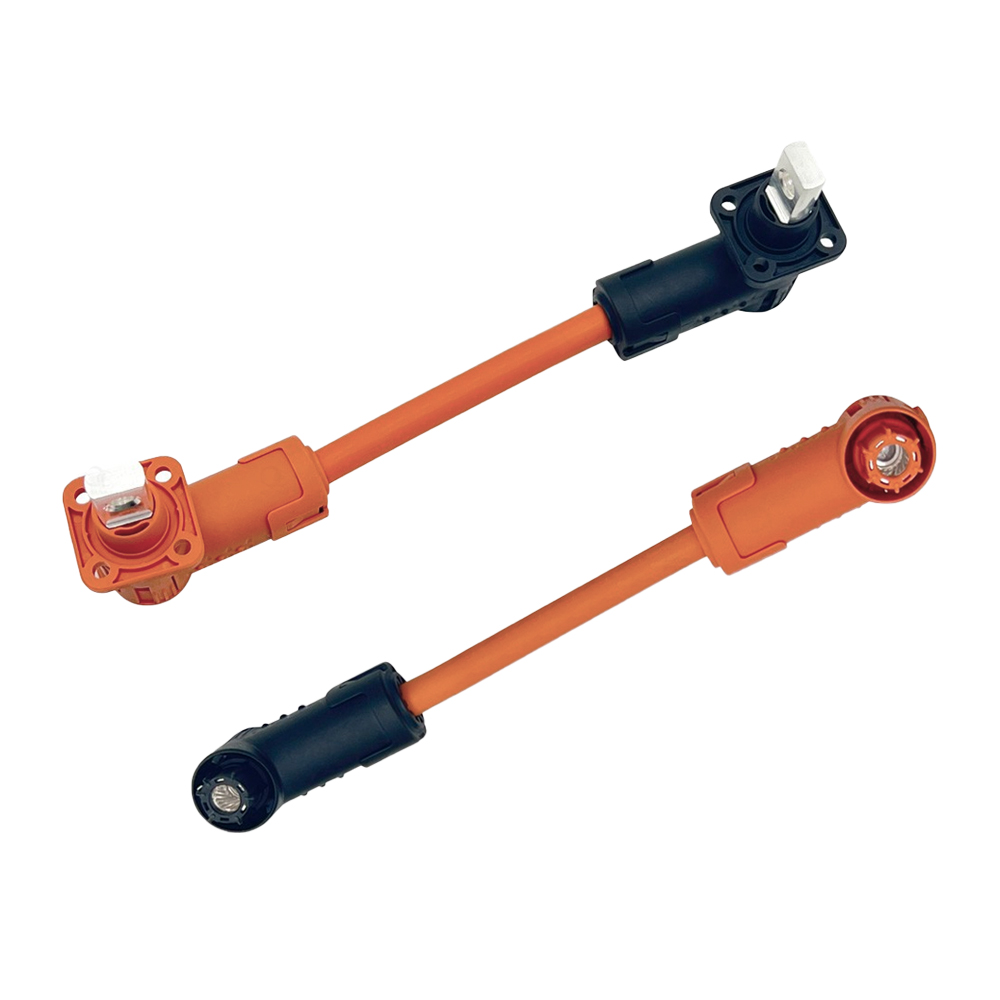

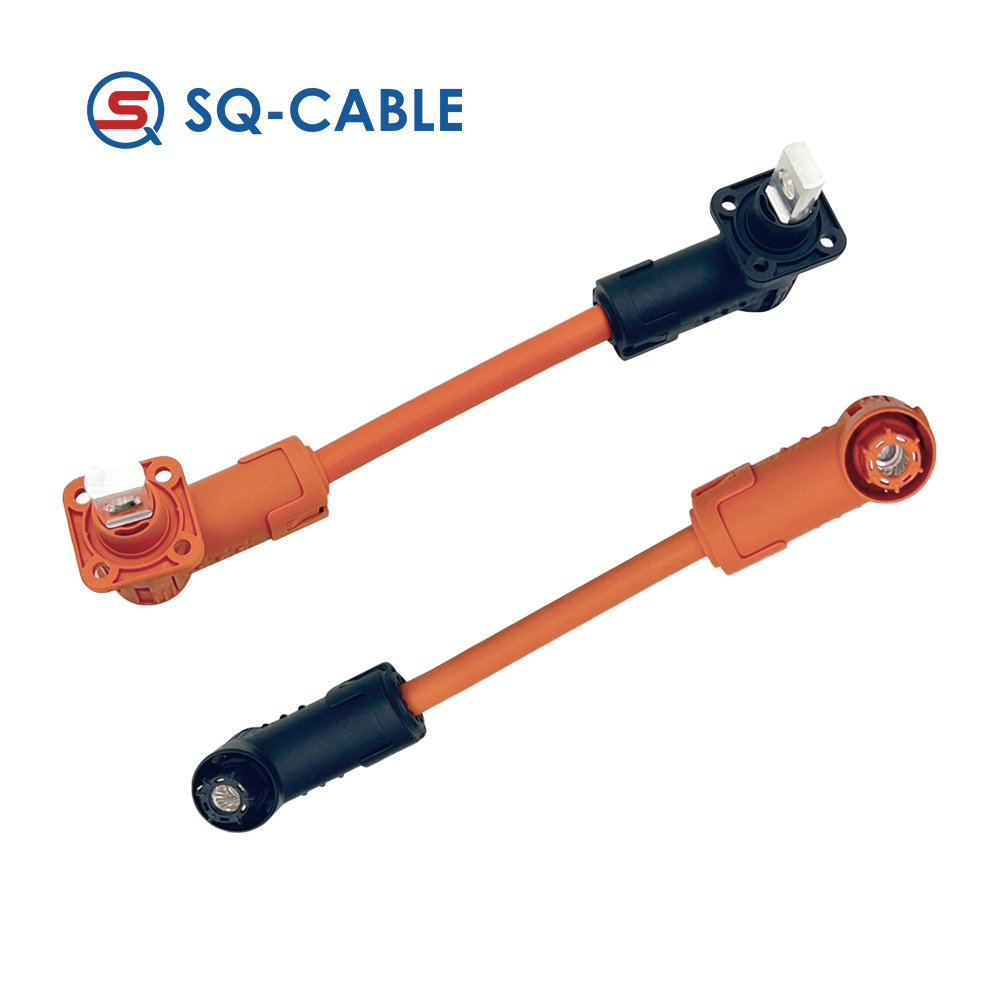

Energy Storage Cables For Battery Connection
- Material of pin:Copper
- Shell:PA66
- Rated voltage: 1500V
- Rated current: 120A / 150A / 200A
- Working temperature:-40℃~+125℃
- IP Rating：IP67
- Wire diameter: 6-12mm
- Certification: CE
Description

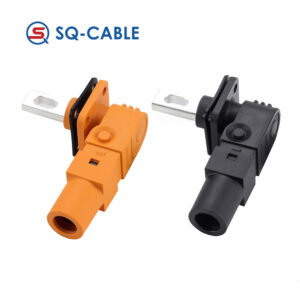

The energy storage connectors serve for the positive and negative high – voltage connections within battery packs of chemical energy storage systems. They enable the fast, secure, and cost – efficient installation of energy storage systems operating at voltages up to 1,500 V and currents up to 200A. The main series consist of 120A, 150A, and 200A models. These connectors are available with conductor cross – sections of 25 mm², 35 mm², and 50 mm². Moreover, the battery energy storage connectors can be customized to meet customer needs. All models incorporate the same technology and share common features! Just choose a secure plug – in connector that aligns with your Energy Storage System (ESS) specifications, and you can be confident that it will ensure maximum safety and an effective connection for your energy storage systems.
Specification
| Shell | PA66 | Terminal | 6-12mm |
| Contacts | Cooper alloy,Silver plating | Cable Range | 10-95mm |
| Rated current | 120/150A/200A | Temperature Range | -40℃~+125℃ |
| Rated voltage | 1500V/DC | Flame Test | UL VW-1 |
| Withstand voltage | 2500V AC | IP Rating | IP67 |
| Insulation resistance | >1000mΩ | Shielding | 360° |
Packing & Delivery
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 – 20 days, which will be adjusted according to the quantity of the bulk order.
Packing
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 - 20 days, which will be adjusted according to the quantity of the bulk order.
