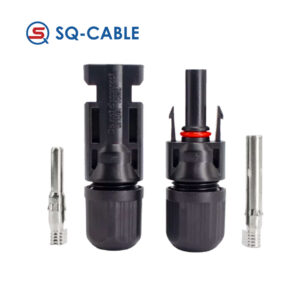

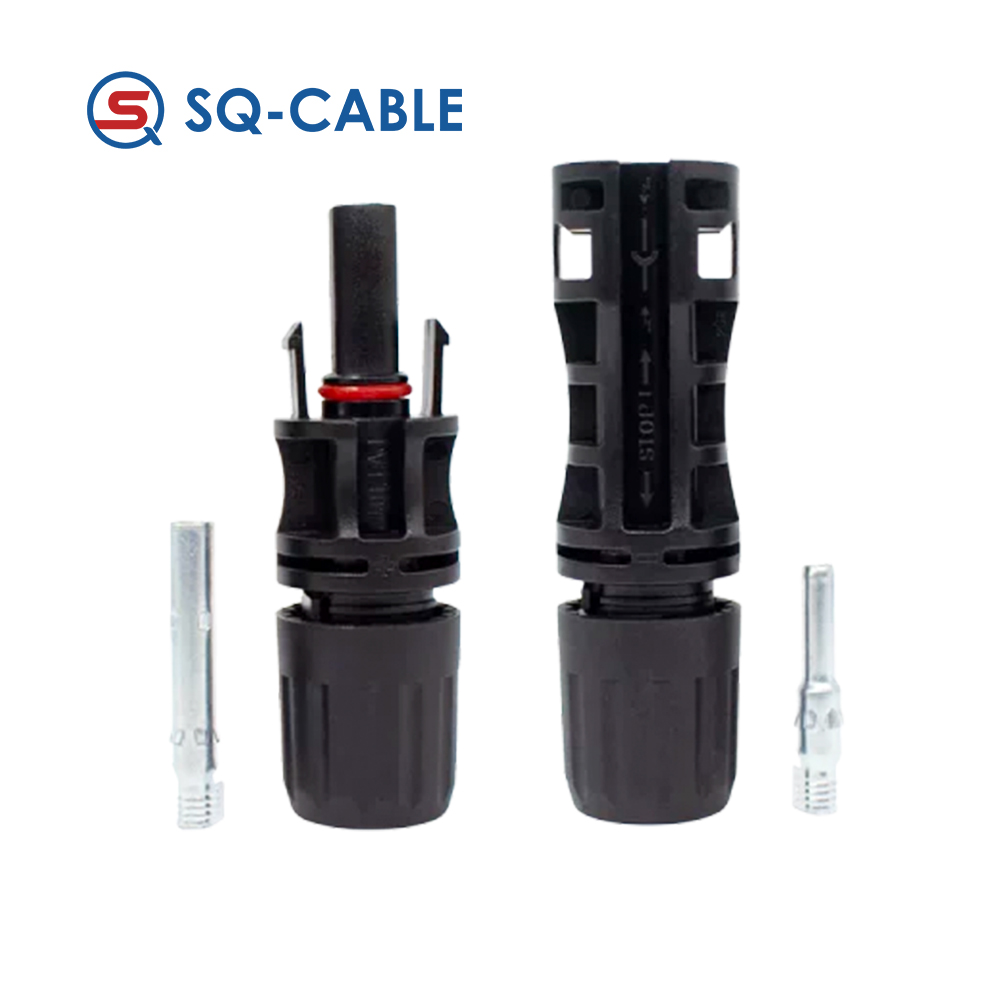

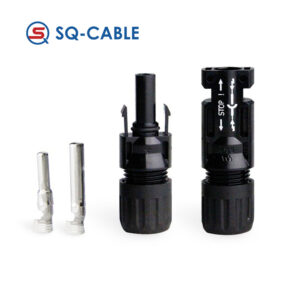

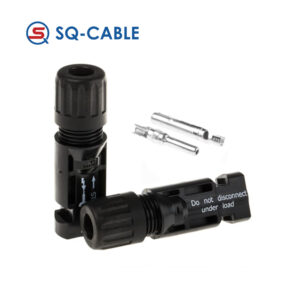

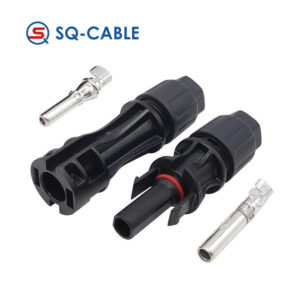

Evo2 Photovoltaic PV Wire Connector
- Insulation material: PPO/PPE
- Contact material: tin-plated copper
- Rated voltage: 1500v
- Testing Voltage: 6500V,50Hz,1Min
- Working temperature:-40℃~+90℃
- Degree of protection:IP68
- Certification:IEC62852 /UL6703
Description
Solar Connectors are precisely made by automation. They ensure top efficiency and long – term performance for PV systems of all sizes. Certified to TUV/UL/IEC/CE standards, they fit Ø2.5 – Ø16mm² photovoltaic solar cables. With a 25 year lifespan, they maintain stable electrical contact.
The male and female connector self lock for easy and reliable installation. Their multi – contact design has a contact resistance below 0.35mΩ, reducing heat and power consumption.

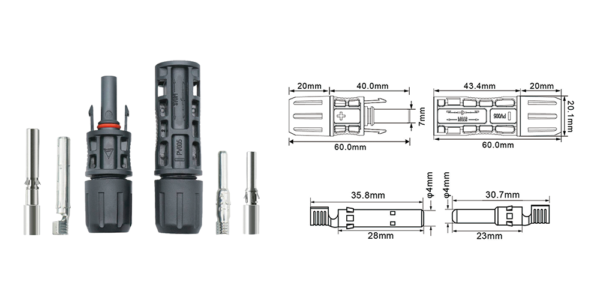

Specification
| Rated Voltage | 1000V DC | 1500V DC |
| Rated Impulse Voltage | 8000V | 8000V |
| Rated Insulation Voltage | 6000V | 6000V |
| Rated Current | 30A | 30A |
| Standard | IEC62852 | IEC62852 |
| Protection Degree | IP68 | IP68 |
| Contact Resistance | ≤0.5mΩ | ≤0.5mΩ |
| Pollution Degree | CATI II/2 | CATI II/2 |
| Ambient Temperature | -40°C~85°℃ | -40℃~85℃ |
| Cable Cross Section Area | 2.5mm²,4mm²,6mm² | 2.5mm²,4mm²,6mm² |
| Insulation Material | PPO | PPO |
| Flame Class | UL94 V-0 | UL94 V-0 |
Packing & Delivery
It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 – 20 days, which will be adjusted according to the quantity of the bulk order.

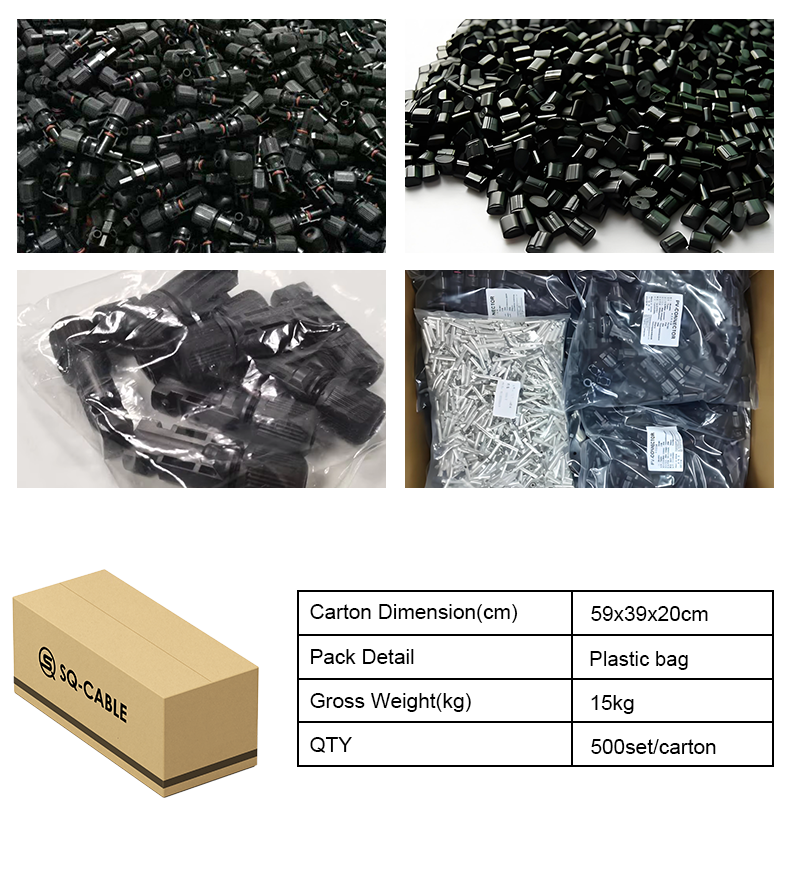

Packing
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 - 20 days, which will be adjusted according to the quantity of the bulk order.
