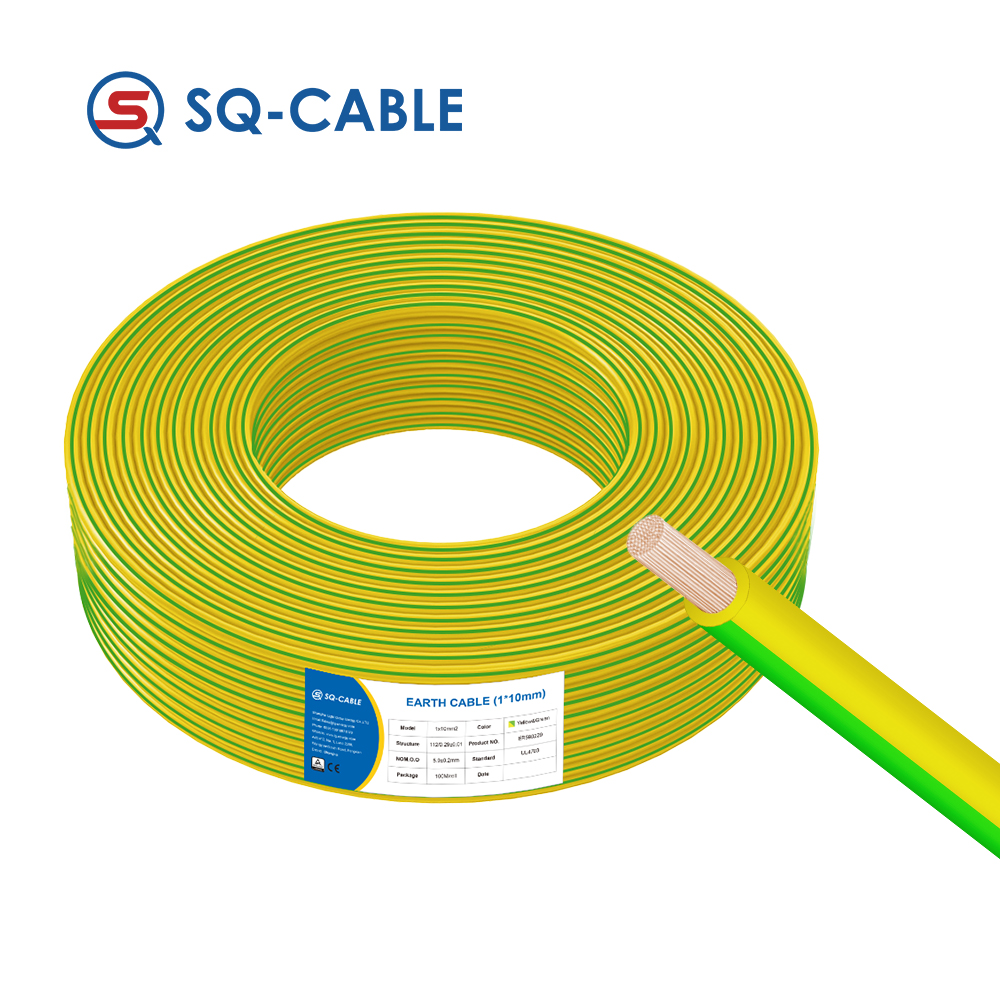

H07Z-K Yellow Green Wire Solar Earth Cable

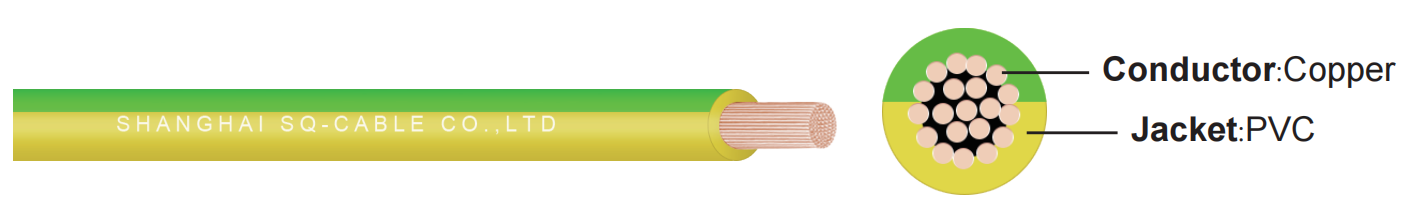

- Conductor: copper
- Insulation & Sheath Jacket:PVC
- Rated voltage:AC 450/750,DC 1000V
- Testing Voltage: 1kV
- Working temperature:-30℃~+70℃
- Fire Performance:IEC 60332-1
- Certification:EN 60332-1-2
Description
The H07Z – K Copper Core Solar earth cable is highly flexible and designed for photovoltaic solar system connections. It suits various solar power setups such as large – scale, rooftop, and water – surface floating power stations. This versatile cable can handle harsh indoor and outdoor environments, like roofs, deserts, lakes, coasts, and mountains (hot, humid, salty climates). Its stable connection ensures long term safe PV system operation, reducing failure rates and operating costs.
Specification
| Cross Section（AWG） | No.of Cores x Cross Sectional Area （n*mm2) |
Thickness of Insulation（mm） |
Overall Diameter（mm） |
Nominal Weight（kg/km） |
Conductor MAX. Resistance AT20℃ (Ω/km) |
| 16 | 1×1.5 | 7 | 3.1 | 20 | 13.3 |
| 14 | 1×2.5 | 8 | 3.6 | 31 | 7.98 |
| 12 | 1×4 | 8 | 4.3 | 48 | 4.95 |
| 10 | 1×6 | 8 | 4.9 | 69 | 3.3 |
| 8 | 1×10 | 10 | 6.4 | 121 | 1.91 |
| 6 | 1×16 | 10 | 8.1 | 211 | 1.21 |
| 4 | 1×25 | 12 | 9.8 | 303 | 0.78 |
| 2 | 1×35 | 12 | 11.1 | 417 | 0.554 |
| 1/0 | 1×50 | 14 | 13.1 | 539 | 0.386 |
| 2/0 | 1×70 | 14 | 15.5 | 730 | 0.272 |
| 3/0 | 1×95 | 16 | 17.2 | 900 | 0.206 |
| 4/0 | 1×120 | 1,6 | 19.7 | 1135 | 0.161 |

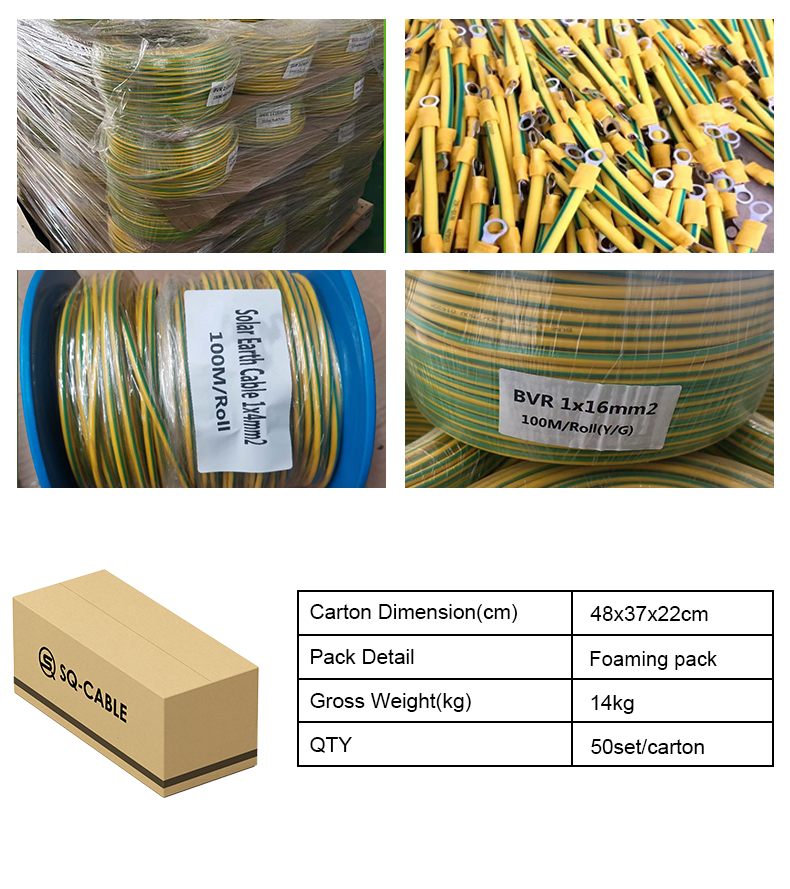

Packing & Delivery
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 – 20 days, which will be adjusted according to the quantity of the bulk order.
Packing
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 - 20 days, which will be adjusted according to the quantity of the bulk order.
