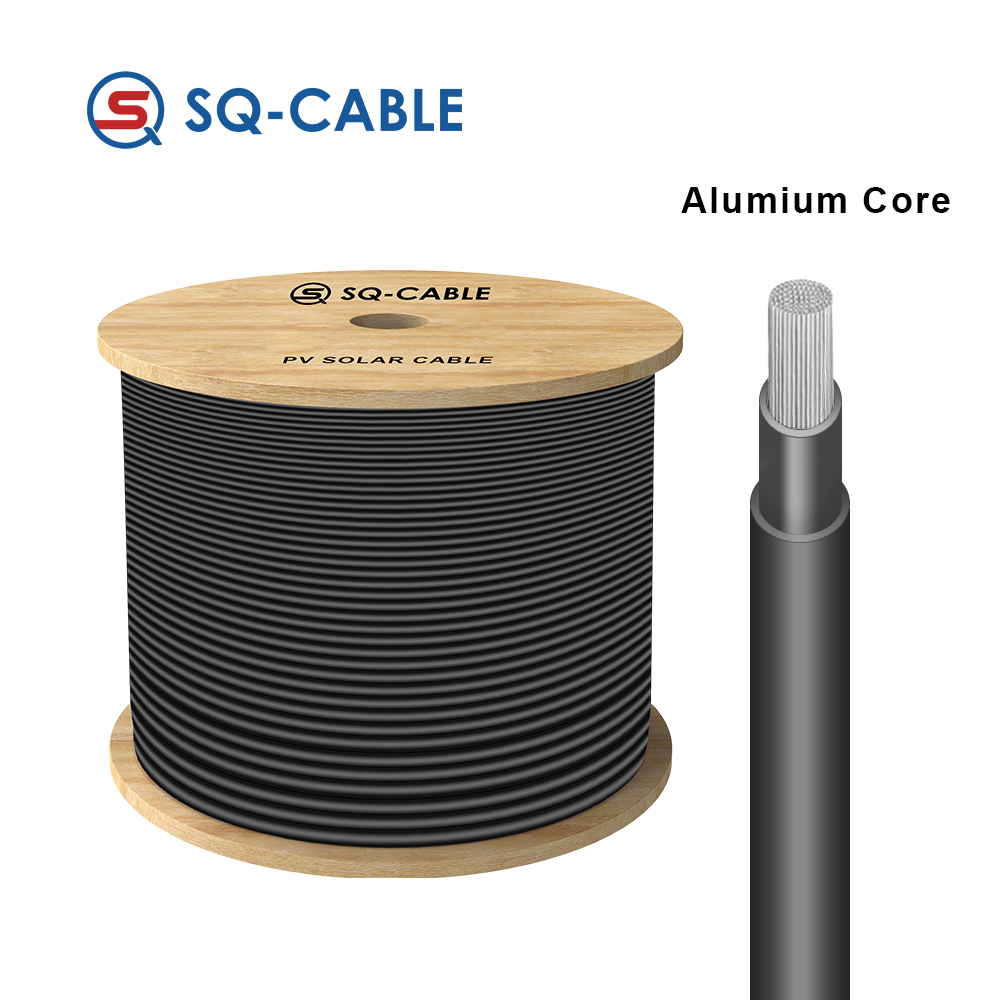

SS Shield Braid Anti Mouse Aluminium Solar Cable
- Conductor: Class 5 (flexible) tinned coppe
- Insulation & Sheath Jacket:XLPE
- Rated voltage:1000/1500VDC,Uo/U=600V/1000VAC
- Testing Voltage: 6500V,50Hz,10Min
- Working temperature:-40℃~+90℃
- Fire Performance:IEC 60332-1
- Certification:TUV/UL/IEC/CE/RoHS
Description
MC4 solar cable, highly flexible, is custom – made for photovoltaic system connections. With TUV/UL/IEC/CE certifications, it adheres to UL4703, IEC62930, and EN50618 standards. Suitable for large scale, rooftop, and floating solar power stations, it caters to diverse solar power fields. This cable withstands harsh indoor and outdoor settings like roofs, deserts, lakes, coasts, and mountains. Its stable connection performance guarantees long term safe operation of PV systems, cutting failure rates and installation operating costs.
Specification
The size from 1.5 mm2 to 120mm2 .
| Cross Section (AWG) |
Conductor NO. (mm2) |
Conductor Stranded OD. (mm) |
600V Cable OD. (mm) |
1KV/2KV Cable OD. (mm) |
Conductor MAX. Resistance AT20℃ (Ω/km) |
| 3/0AWG | 58 | 10.4 | 16.7±0.02 | 17.2±0.02 | 0.3459 |
| 4/0AWG | 58 | 12.6 | 18.9±0.02 | 19.3±0.02 | 0.2743 |
| 250Kcmil | 58 | 14.3 | 22.1±0.02 | 22.6±0.02 | 0.2322 |
| 350Kcmil | 58 | 15.8 | 23.6±0.02 | 24.1±0.02 | 0.1659 |
| 500Kcmil | 58 | 19.2 | 27±0.02 | 27.5±0.02 | 0.1161 |
| 600Kcmil | 58 | 20.8 | 29.4±0.02 | 29.9±0.02 | 0.09673 |
Packing & Delivery
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 – 20 days, which will be adjusted according to the quantity of the bulk order.
Packing
In the SQ cable factory, the equipped intelligent and digital factory enables the integration, intelligence, and digitization of the whole production and inspection process.
We can supply various packages like cable rolls, cartons, wooden drums, reels and pallets for different meters as you request.
Delivery Time
We try hard to make as much orders as possible ready for shipping within 48 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. Normally, the customized production time is 10 - 20 days, which will be adjusted according to the quantity of the bulk order.
