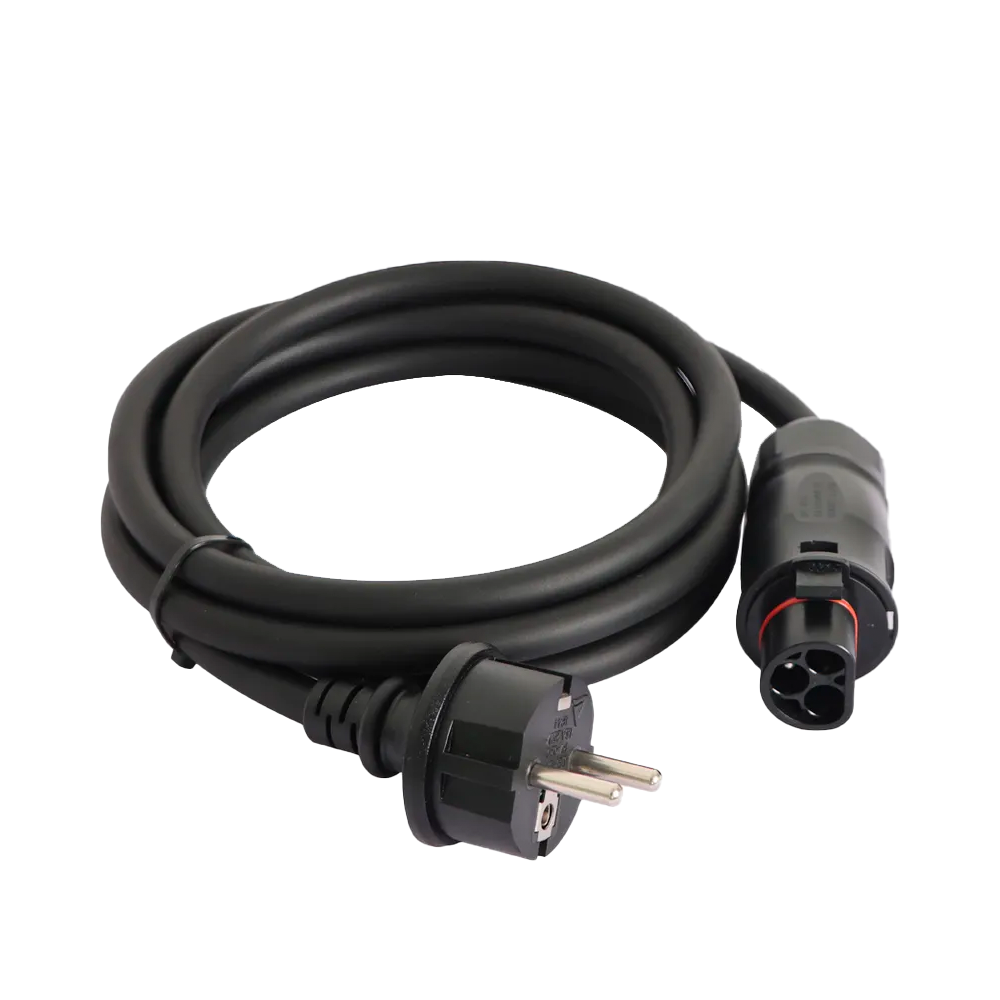

VDE H07RN-F 3X1.5mm Rubber AC Cable
- Material of pin:Copper alloy & silver plated
- Rated voltage: TUV: 250V AC；CSA: 350V AC
- Working temperature:-40℃~+85℃
- Cable:VDE 3G1.5mm H07RN-F
- Connector A: Betteri BC01 Female
- Connector B: 16A Schuko Plug
- Certification: EN 61535；PPP 59015A:2013
Description
The Betteri BC01 cable is crafted from top – grade UV resistant material, ensuring long – lasting performance. Meeting the IP68 waterproof and dustproof standards, it’s equally at home in indoor and outdoor settings. A male connector is conveniently installed on the micro inverter’s output. Perfectly suited for one phase inverters and cables with a diameter ranging from 10 to 14 mm.
Specification
| Product Type | BC01 Cable Female To Schuko |
| Rated Voltage |
230V AC
|
| Cable |
VDE 3G1.5mm H07RN-F
|
| Rated Current | 25A(4mm²) |
| Contact Materials | Copper |
| Protection Degree | IP68 |
| Contact Resistance | ≤1mΩ |
| Material of pin |
Copper alloy &silver
plated
|
| Ambient Temperature | -40℃~85℃ |
| Cable Cross Section Area |
2.5/4.0mm
|
| Flame Class | UL94 V-0 |
| Standard |
EN 61535
PPP 59015A:2013
|
